Applied materials: It can stably provide the world's first-class high-quality grain-oriented silicon steel sheet materials (Baosteel, Wuhan Iron and Steel, Shougang, Nippon Steel NSC, Kawasaki JFE, Pohang POSCO, Armor AK), optional material thickness: 0.05, 0.08, 0.10mm Ultra-thin silicon steel sheet, 0.1mm super silicon steel sheet, 0.23, 0.27, 0.30, 0.35mm ordinary or high magnetic induction Hi-B silicon steel sheet.

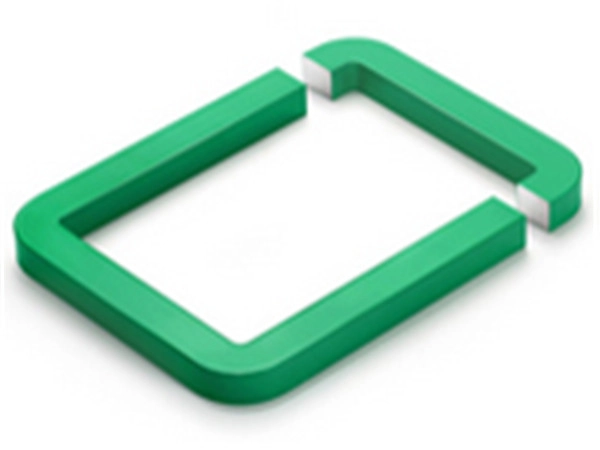

Structural features: It is formed by winding a continuous curved belt along the direction of the magnetic circuit. The cross section is rectangular, the window is rectangular, the magnetic circuit is completely closed, and there is no magnetic flux leakage, so its magnetic performance is optimal.
Application fields: Widely used in 50Hz transformers, transformers, reactors, choke coils and other electromagnetic components in electronic equipment.
Specification range: can be customized according to customer requirements to meet various specifications of customers.
Example
Explain
Dongguan Youyou Technology Co., Ltd. The following materials are used to make magnetic cores for current transformers and voltage transformers.
Low iron loss and high magnetic permeability cold-rolled oriented high-quality silicon steel material, the thickness is 0.05mm, 0.08mm, 0.10mm, 0.20mm, 0.23mm, 0.27mm, 0.30mm and 0.35mm, and the minimum material width is 5mm.

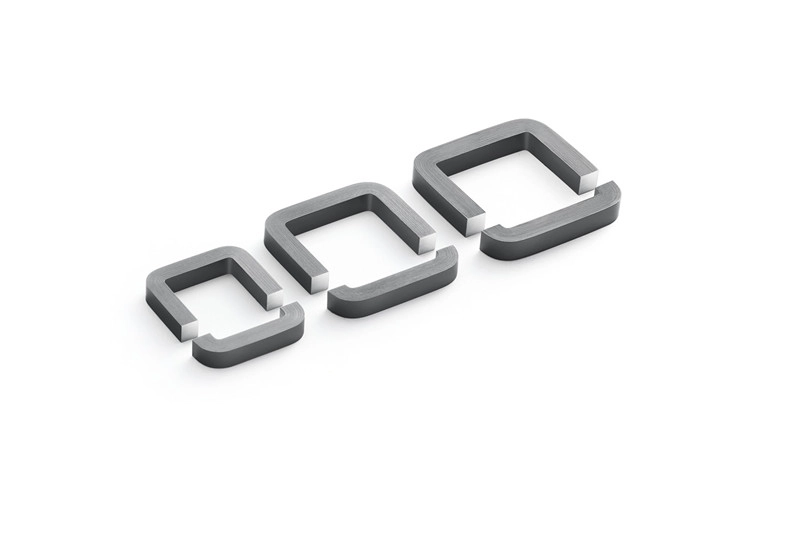

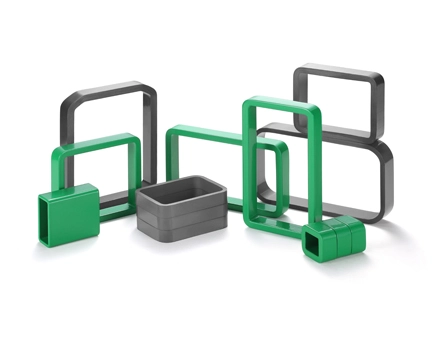

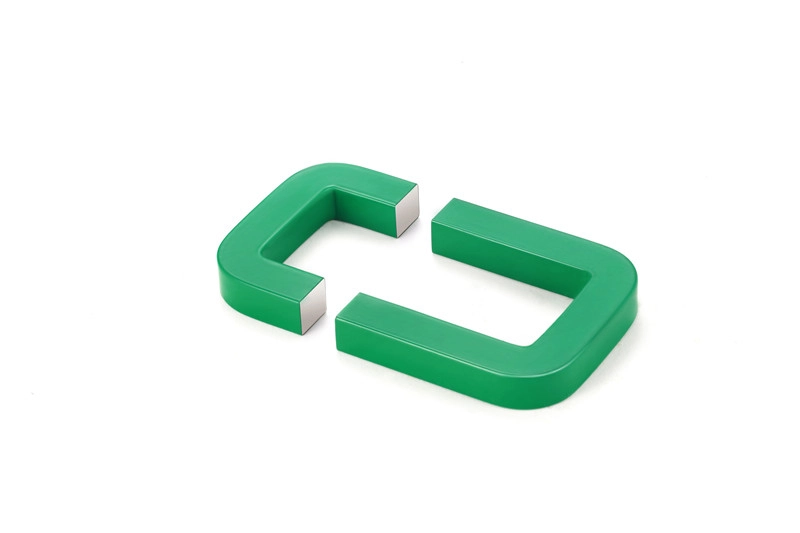

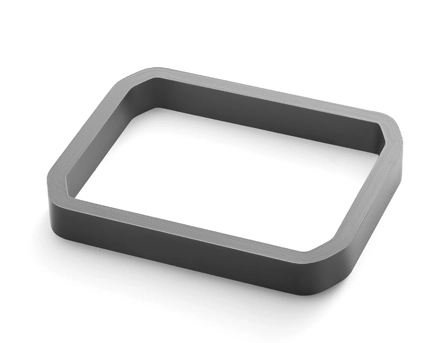

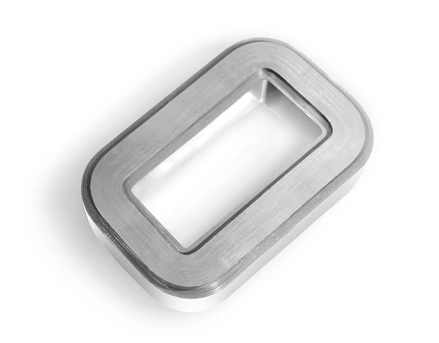

Various shapes of cores are available: ring cores, oval cores, rectangular cores, C-section cores, gap cores, split transformer cores.
The electromagnetic performance of the product is close to that of the raw material, and the processing coefficient is small
The electromagnetic performance of the product is relatively stable
The temperature stability of the electromagnetic performance is good, and it can work stably and reliably in the temperature range of 45~130C for a long time
