ST050 ultra-thin silicon steel motor core, 0.05mm thickness, high magnetic conductivity and low energy loss

Ideal for high-efficiency motors with both low loss and miniaturization

It is an ideal material for motor cores, etc., because its magnetic properties are isotropic. The thinness allows extremely low iron loss in the high rotation range, and by having a higher magnetic flux density than other materials, it is possible to achieve both high efficiency and miniaturization.

Non-oriented Silicon Steel ST-series high-efficiency motors with both low loss and miniaturization

0.05MM st-050 thin gauge silicon steel strips

Application example

Expertise

Low Loss	By reducing the plate thickness, eddy currents can be suppressed and loss can be reduced.
Miniaturization	It has a high magnetic flux density and contributes to the miniaturization of motors, etc.
Optimal Range of Use	It has a higher magnetic flux density than other materials at a working frequency of 400Hz to 40kHz, making it possible to reduce the size of motors, etc.
Insulating Coating	A superior insulating coating maximizes material properties. The coating has a high heat resistance temperature and can maintain a stable coating even at high temperatures (up to 850°C).
Raw Material	Fe (0.003)Si steel (raw material of Nippon Steel Corporation) is used for ultra-thin electrical steel strips. A highly reliable electromagnetic steel strips material with a track record of over 50 years of use.

Material properties

Custom Core

Stator and rotor

We provide customized motor stator and rotor cores to meet your specific needs.

Our stator and rotor cores can be designed and manufactured according to your requirements.

Customization options for stator and rotor cores include multiple aspects such as size, shape, and material.

Our professional team will manufacture high-quality and reliable stator and rotor cores according to your requirements and technical specifications to ensure the performance and efficiency of the motor.

Using glue bonding + wire cutting method. Convenient small amount of proofing and batch stamping production. The processing is mature. For more details, please contact us.

Core Shape

Glue bonding process, super core processing

Glued motor core, more compact assembly, improve the efficiency and performance of the motor, while also reducing noise and vibration.

Turbocharger high speed motor customized

Stator glue bonding + wire cutting method. Fast proofing, testing motor core performance superiority.

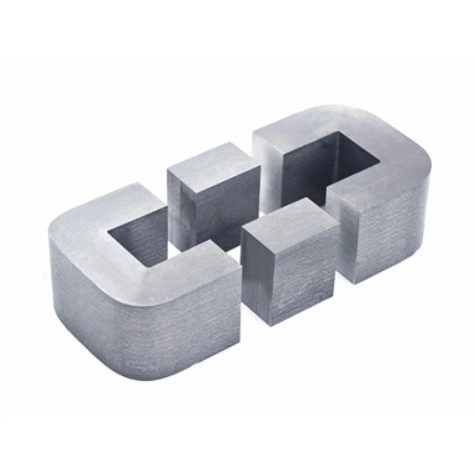

Block core with Round edge

A laminated core made in virtually the same shapeas a cut core, so that it is possible to use the samewashers and clamp bands.

Custom Stator • Lamination • Glue bonding • Varnish bonding
